INDICATOR OF SHORT CIRCUIT ИКЗ-02
INDICATOR OF SHORT CIRCUIT ИКЗ-02

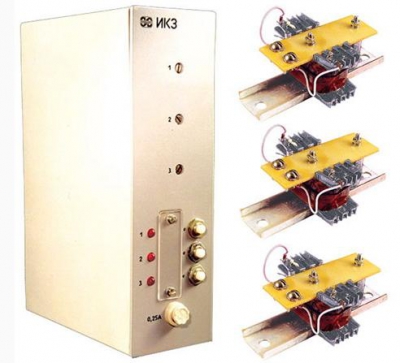

Indicator of short circuit ИКЗ-02 is applied to fixate current flow of short circuit of one or several damaged segments of cable line to 10 kV.
Advantages of device
- Easy to use.
- Allows prompt determination of damaged segments fault in cable line.
On separate order is supplied
- plates for MTД attachment to the cell with overall dimensions 1000х60х10 mm - 3 pc.
Standard delivery set
Indicator unit 1 pc.
Magnetic current sensor 3 pc.
Set of spare parts and accessories 1 kit
Operations manual 1 copy
Specifications
- Indicator is intended to operate at temperature from - 25 °С to + 40°С, at relative humidity of air not exceeding 98% at 20°С and height above water not more than 1000 m.
- Indicator power supply is affected from AC network with voltage (220 +22 -33) V and frequency (50±0,5)Hz.
- Main power not exceeding 6V*A.
- Adjustment range of actuating current 100-2000 А.
- Actuation time of indicator from the moment of flow of short circuit current not more than 0,06s.
- Release time of indicator to initial state (at supply voltage) not more than 30 s.
- Quantity of fixation directions of short-circuit current - 3.
- LED response indication and discrete information generation to telecontrol device are provided.
- Outputs to connect telecontrol devices provides commutation of constant voltage of positive polarity:
voltage, not more than - 42VВ;
current, not more than - 0,1 А;
resistance of switch contact in open condition, not more than - 200 kOhm;
resistance of switch contact in close condition, not more than
- 200 Ohm;
- Time of information storage by indicator about current flow of short circuit on segment of cable line (after switching-off during response time) not more than 8 hours.
- Overall dimensions, mm, not more than:
- indicating block - 250x200x80
- MDT - 200x100x100
- Weight, kg, up to:
- indicating block - 3
- MDT - 0,8
